Q Display

Much more than a plotter.

Q Display is the centerpiece of your connected boating experience. It combines connectivity, navigation, entertainment, engine data, control, and safety features into one elegant and intuitive touchscreen. Whether you’re planning routes, cruising, or just enjoying your day at the water, Q Display makes your time on the water smoother, safer, and more enjoyable.

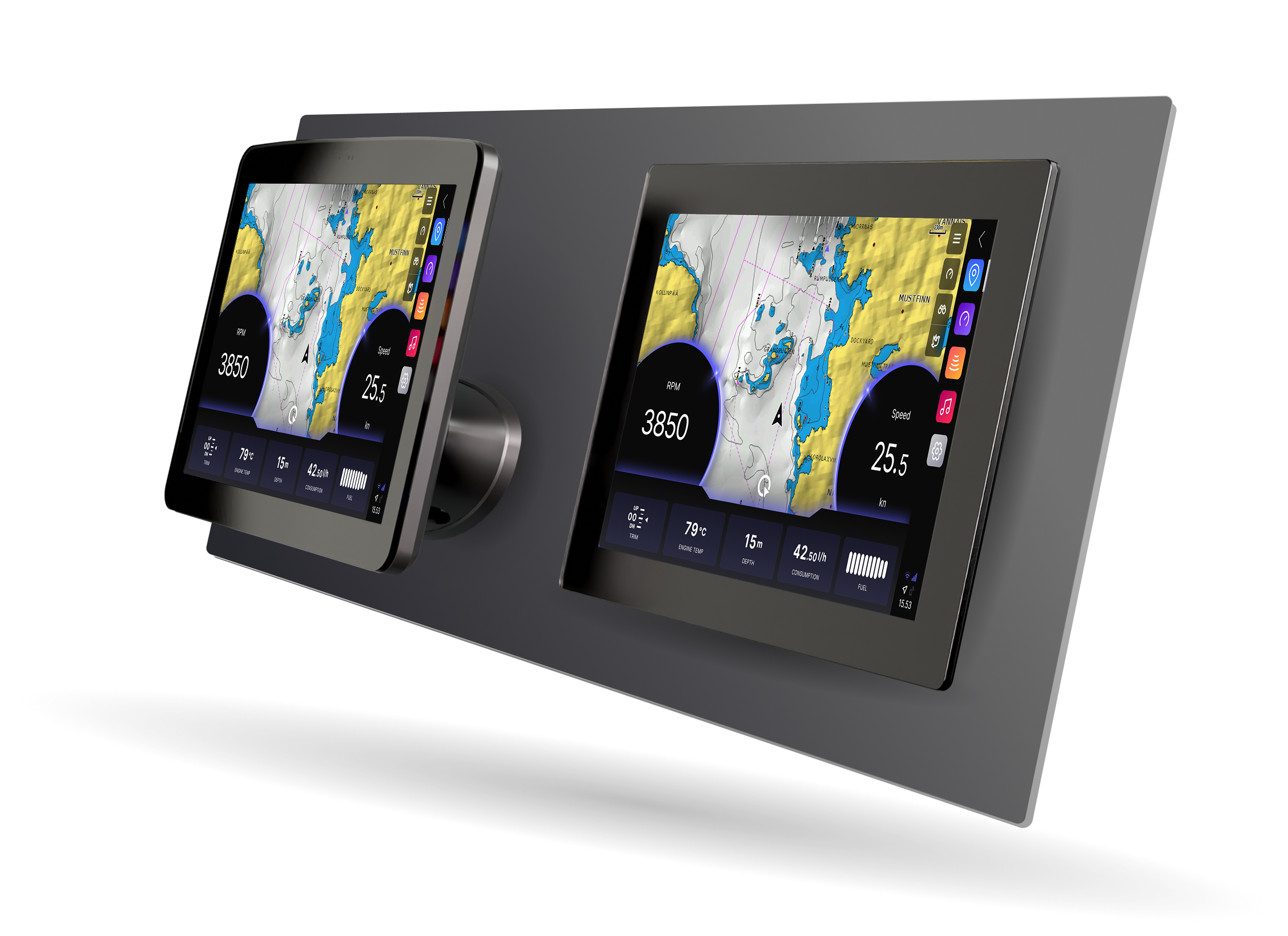

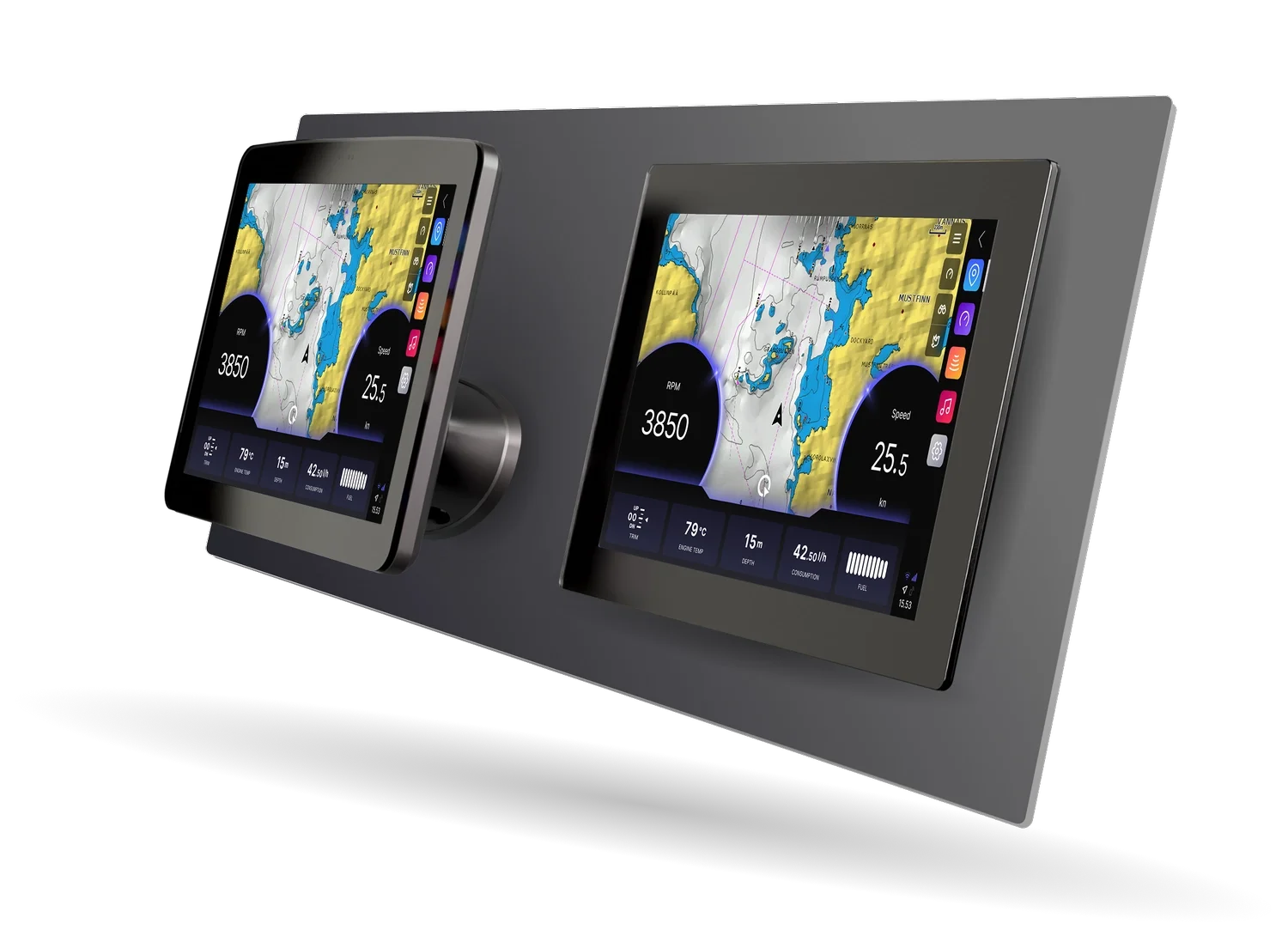

Versatile mounting options

Q Display is available in two different mounting option: Classic mount and Float mount, making Q Display a perfect option for all kinds and range of boats.

Classic mount
Some become legends for a reason. The Classic mount offers a sleek, surface-mounted design that supports larger displays all the way up to 24”. Classic mount is the ideal choice when you want maximum screen space with a timeless, integrated look.

Float mount
The new and innovative Float mount fits perfectly on many previously impossible consoles, as it requires a minimal installation footprint.

Thanks to its truly revolutionary two-piece design, including a floating Q Display and a separate Q Core unit, the units can be placed meters apart with a single Q CoreLink cable, providing maximum freedom with minimal installation restrictions.

Available for selected markets from May 2026

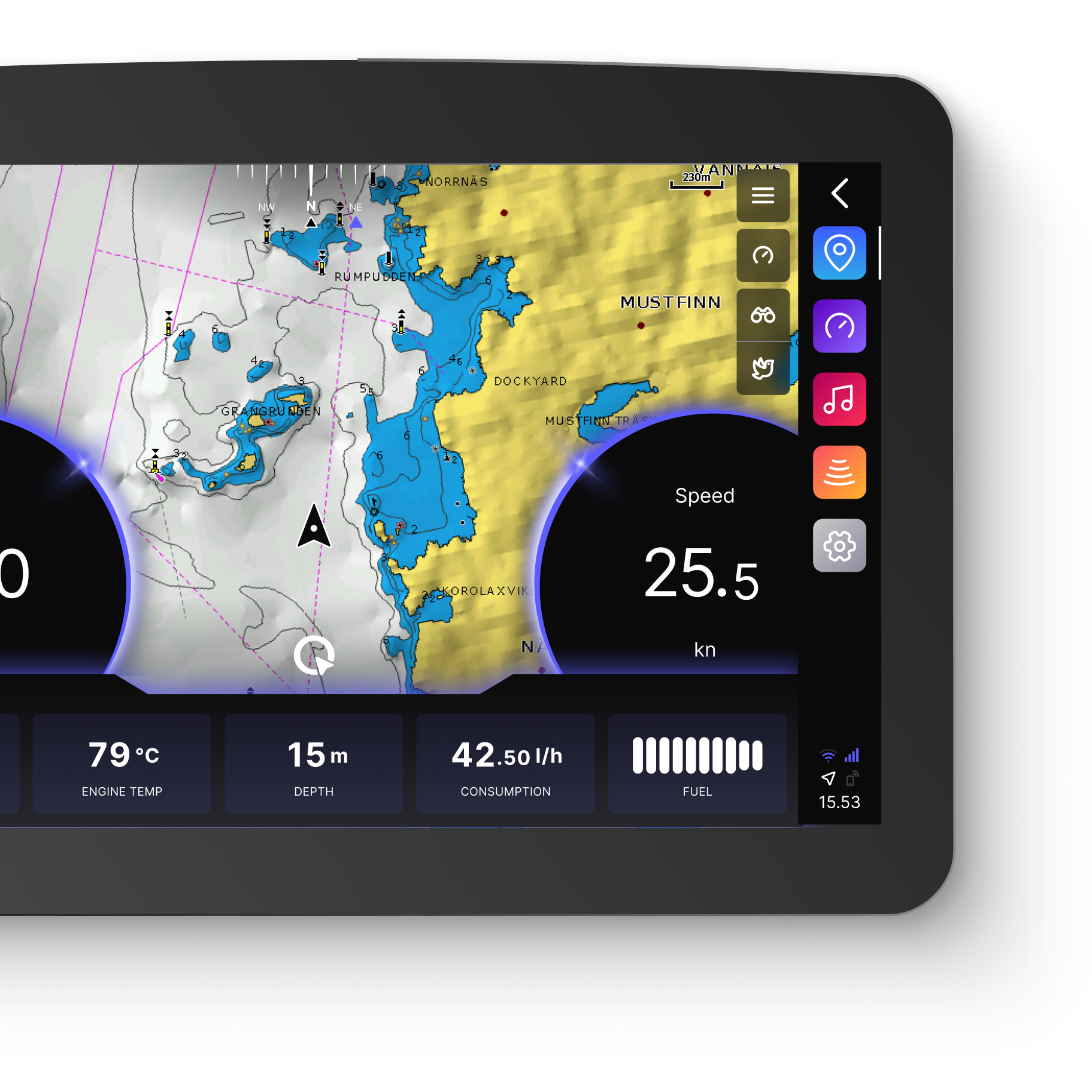

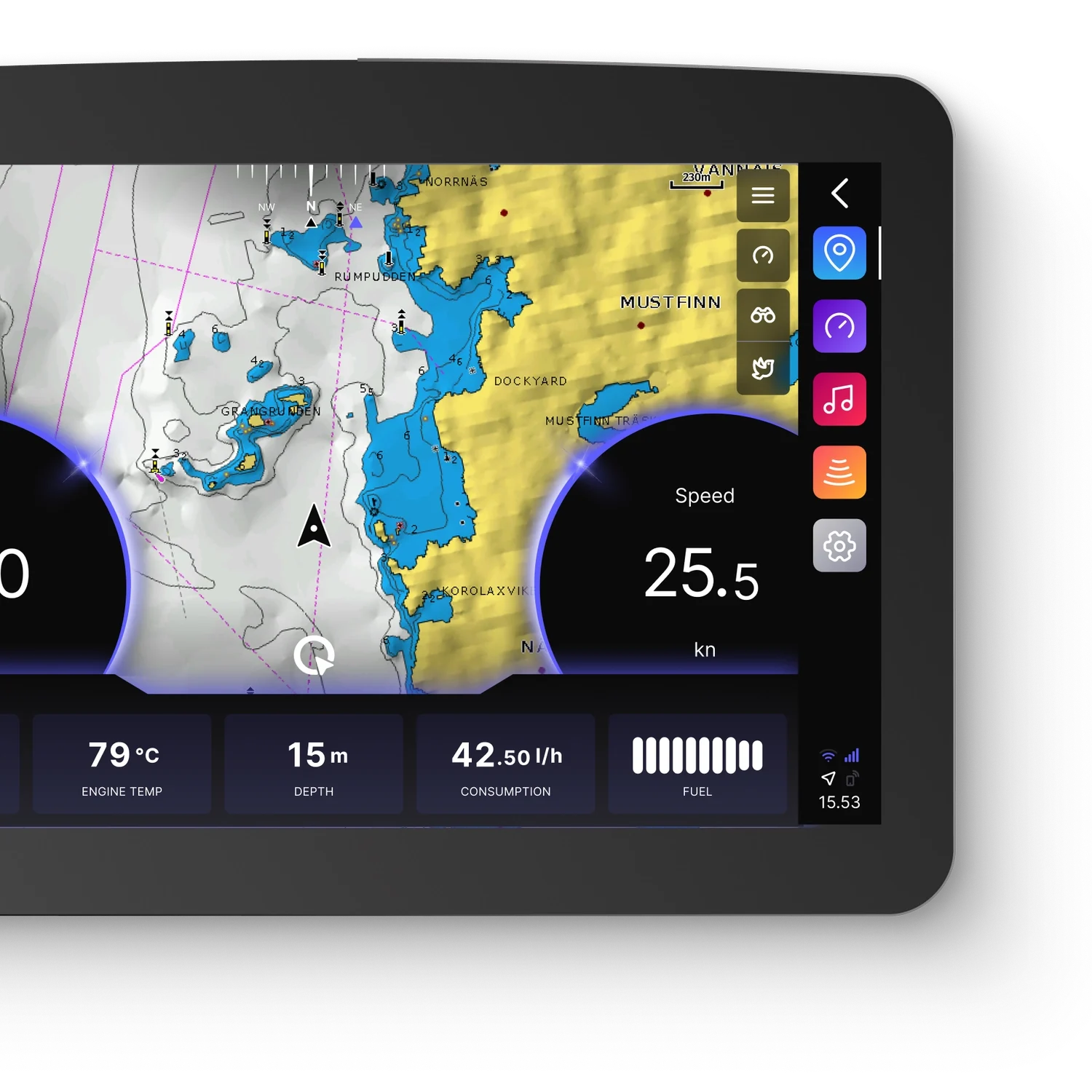

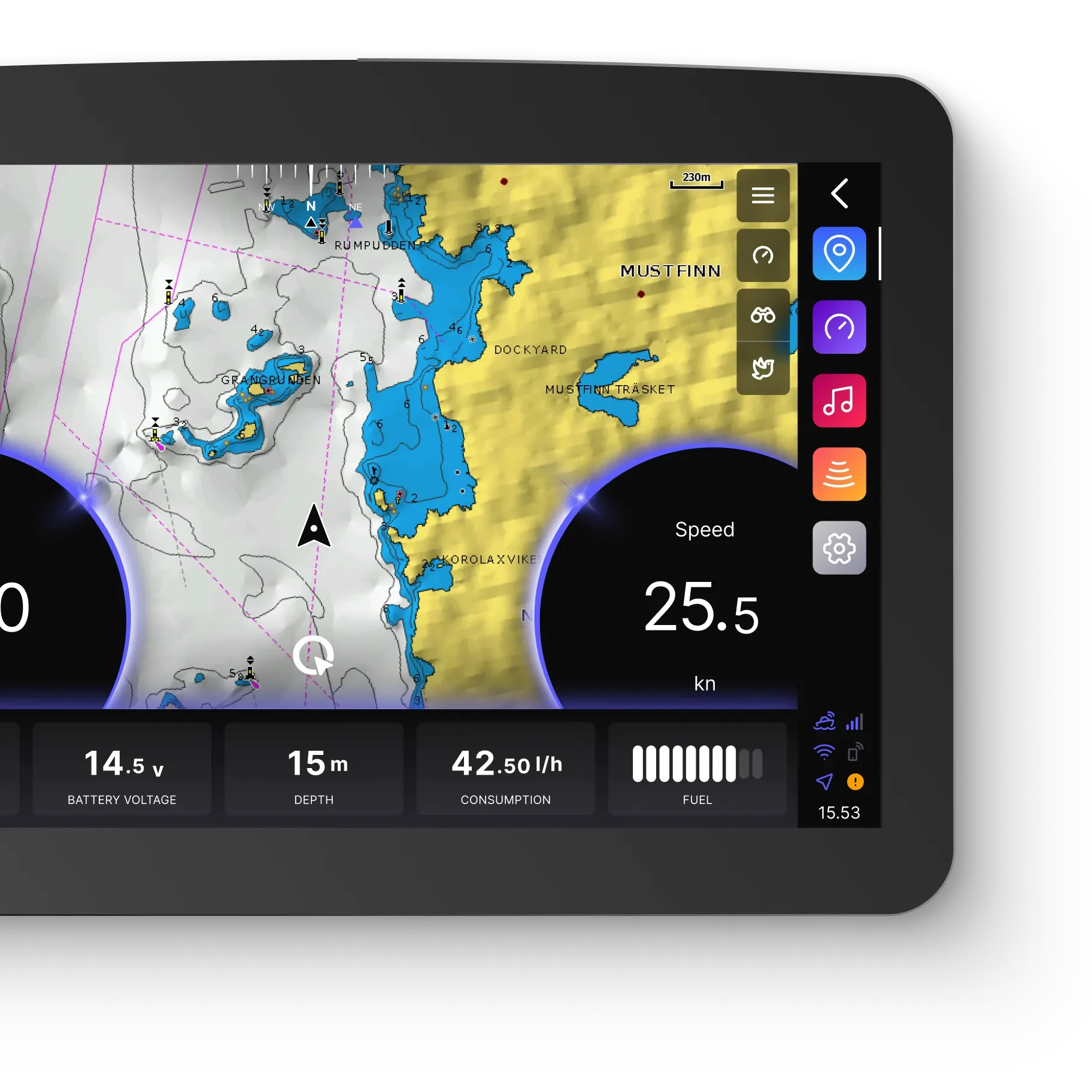

Q Display Float mount

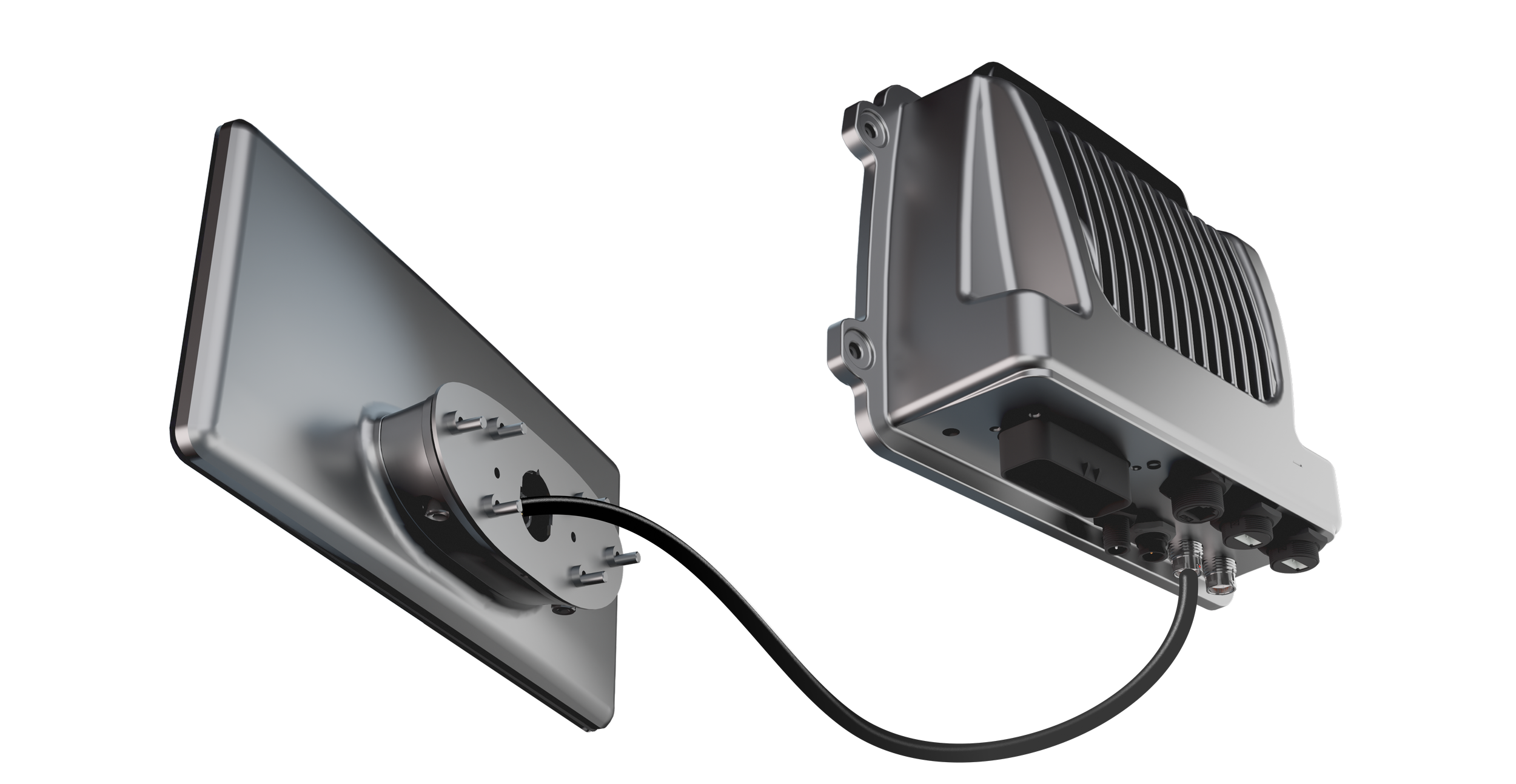

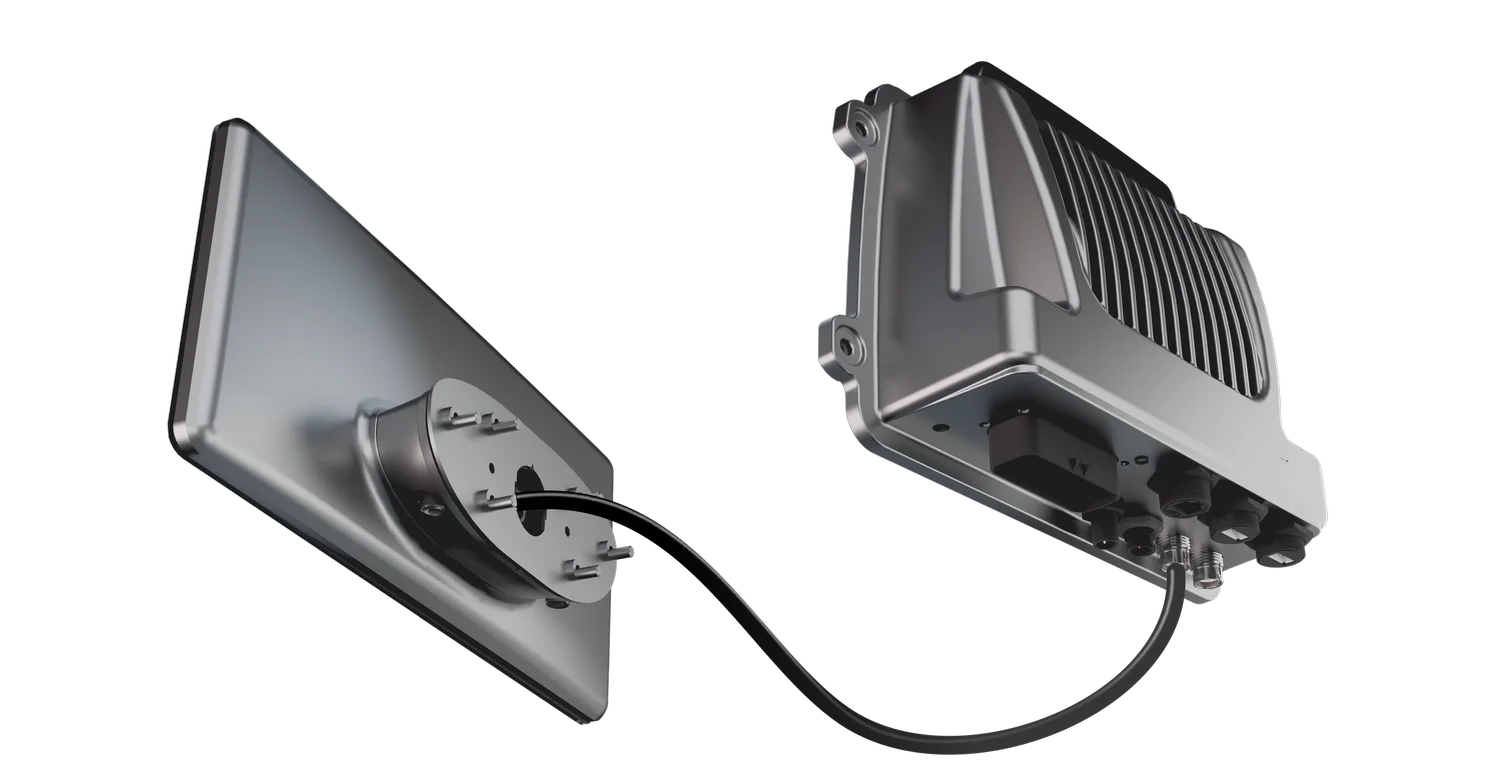

Unique two-piece design

Both Float mount Q Display comes together with a separate Q Core Unit. The two-piece design allows the display and core unit to be installed meters apart using a single Q CoreLink cable. This gives full freedom to place the core unit away from space-limited consoles, in a location where it fits naturally, or closer to the engine and connected accessories.

Powerful features. Beautifully simple.

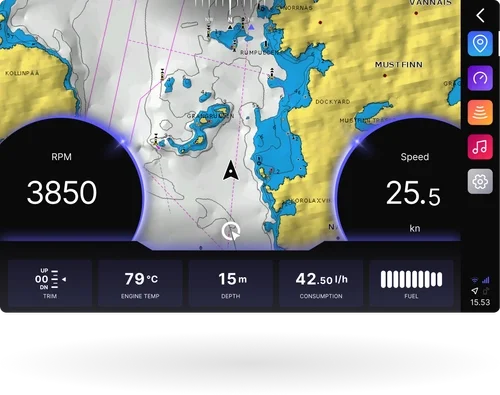

  • Image of chart application with gauges

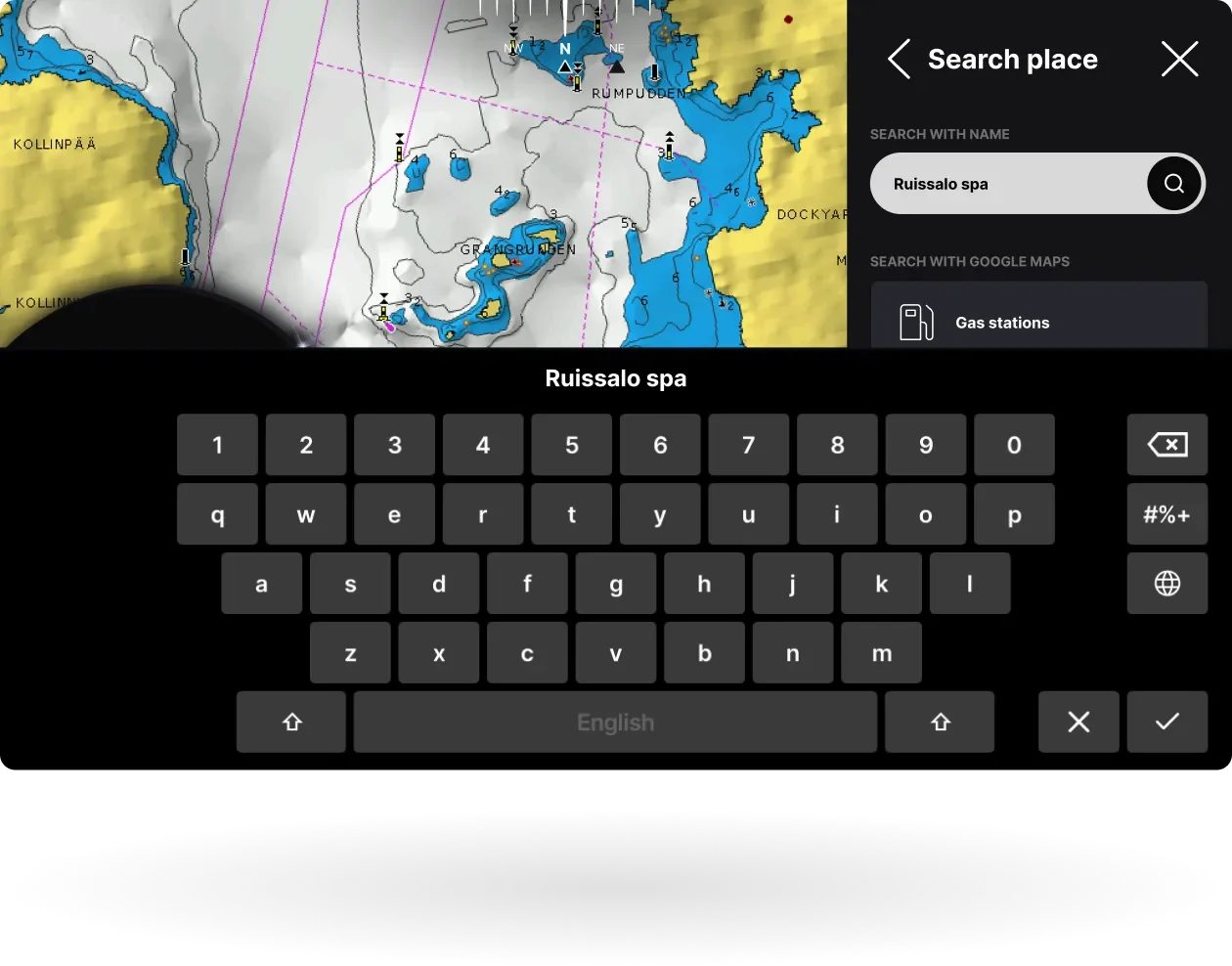

    Enhanced Navigation

    The Q Display is compatible with and supports all Navionics+ and Navionics Platinum+ features, including dock-to-dock auto routing, enhanced with genuine Q add-ons, such as transparent widgets and overlay dashboards, and intuitive chart controls.

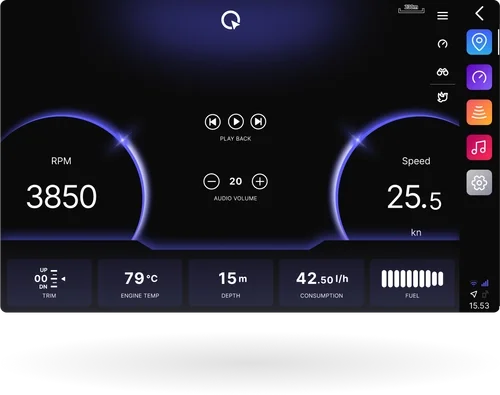

  • Image of the standard Q Dashboard

    Modern Dashboards

    Q Display replaces traditional gauges and physical instruments with modern, sleek, and customizable dashboards. Select which suits you the best: modern, classic, sailing instrument, or data heavy - or even best better use them all.

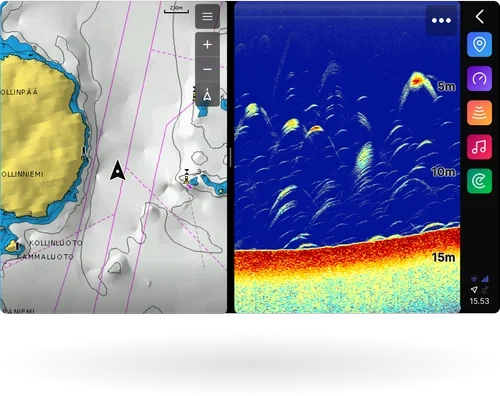

  • Image of split view with chart and fishfinder

    Split Views

    With split views, you can keep everything important in sight. View your chart alongside fishfinder, music controls, or other apps – all on the same screen. Whether you’re navigating tricky routes or just keeping an eye on multiple systems, split views make it simple, seamless, and safe.

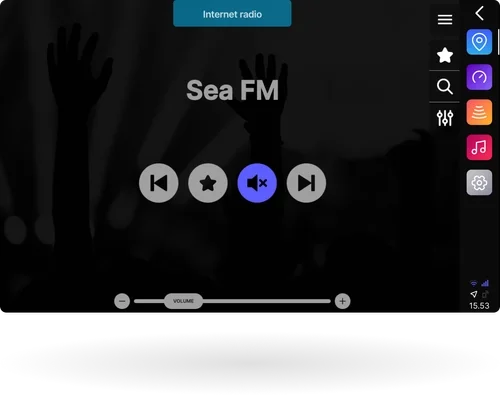

  • Image of internet radio application

    Entertainment

    Boating should be enjoyable. The Q Display takes entertainment seriously, so that you can relax: just connect speakers with the Q Speaker cable, and your onboard entertainment center is ready. Stream music from your mobile, listen to internet radio or even watch YouTube - the rest is up to you.

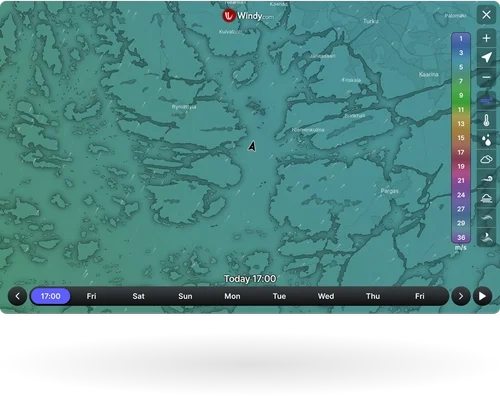

  • Image of Windy application

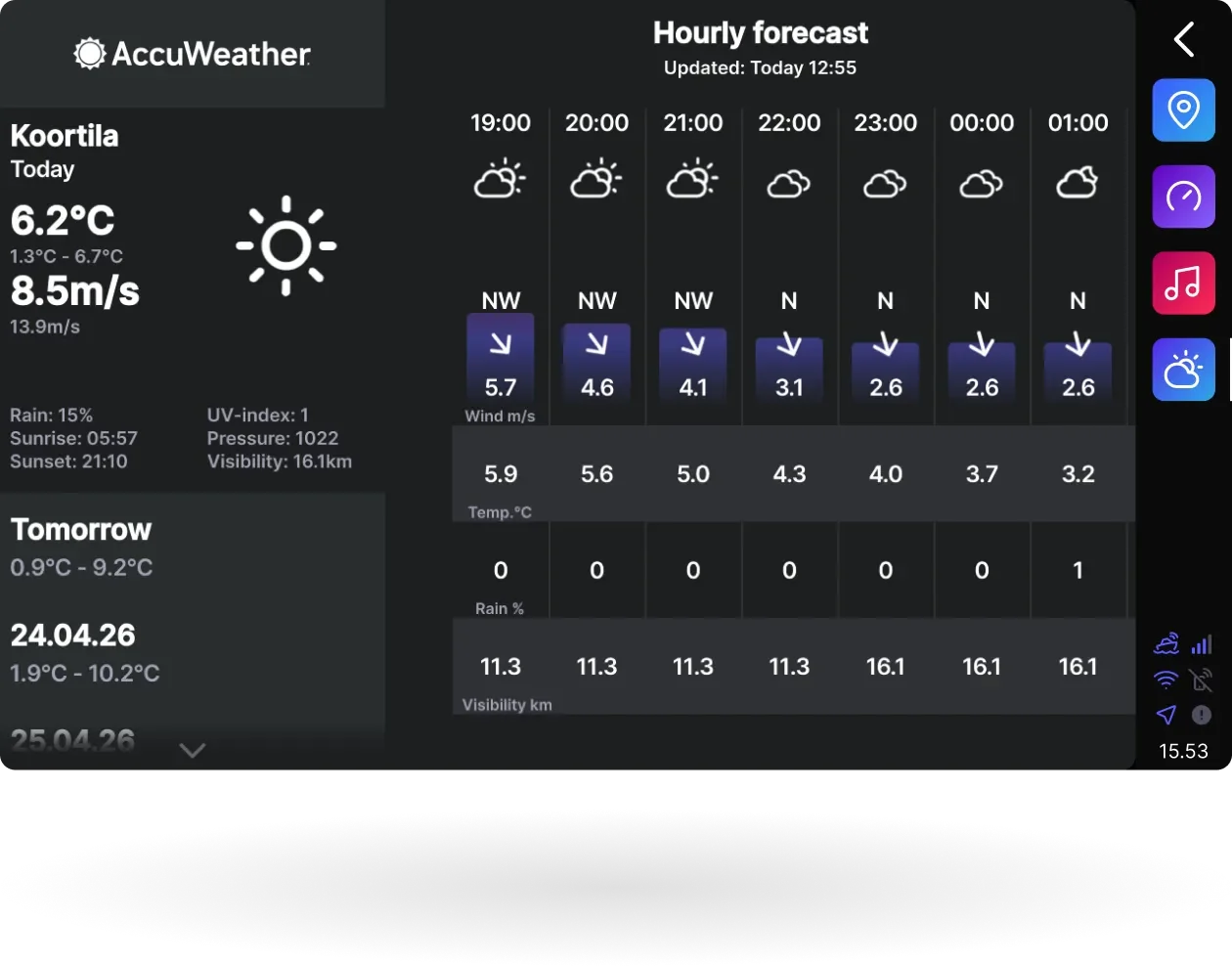

    Weather Forecasts

    Get the latest AccuWeather or Windy (available with subscription) weather updates right on your Q Display. With integrated forecasts, you can track wind, waves, and weather patterns in real time, helping you make smarter decisions before and during every trip.

    Windy forecasts are available as an add-on to a Q Connected subscription.

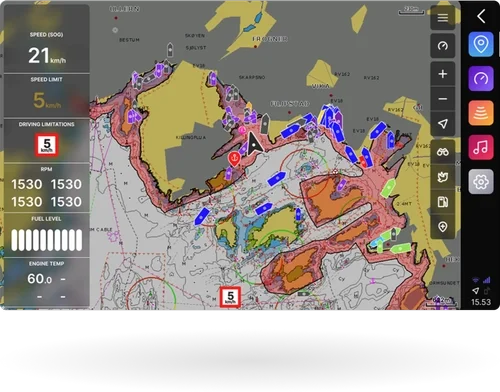

  • Image of chart with limitation areas

    Limitation Areas and AIS

    Navigate with confidence using built-in support for official speed limits and restricted areas in Finland and Norway. With AIS data also available, you can see nearby vessels in real time, making busy waterways easier to handle.

    Limitation Areas and an AIS objects are available as an add-on.

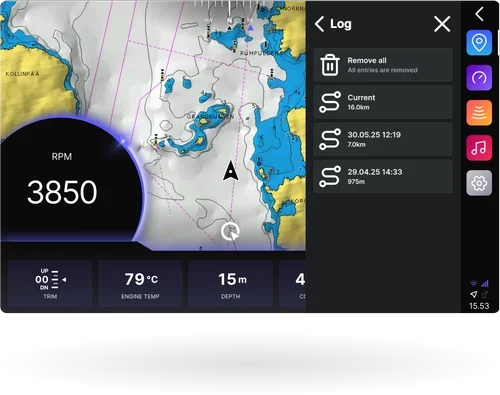

  • Image of chart logbook

    Logbook

    The Q Display automatically records your trips, routes, consumption, and other key data into a digital logbook — no pen and paper needed. Review past journeys, track fuel usage, and revisit your favorite destinations with ease.

    Logbook accessible also from the Q App.

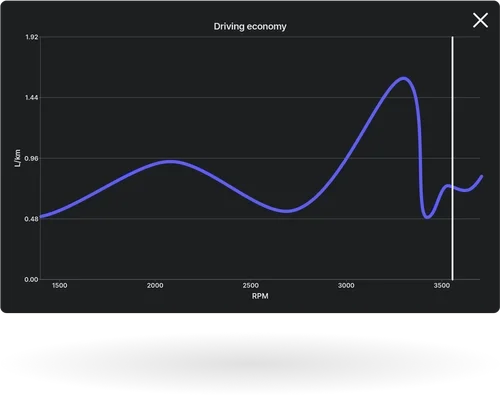

  • Image of consumption/RPM graph

    Statistics

    Get visualizations of your boat’s performance in real-time. For example, the Consumption/RPM graph helps you find the most fuel-efficient cruising speed by showing your fuel consumption relative to engine RPM. Whether you’re looking to optimize range or reduce fuel costs, this tool makes smarter, more economical boating simple.

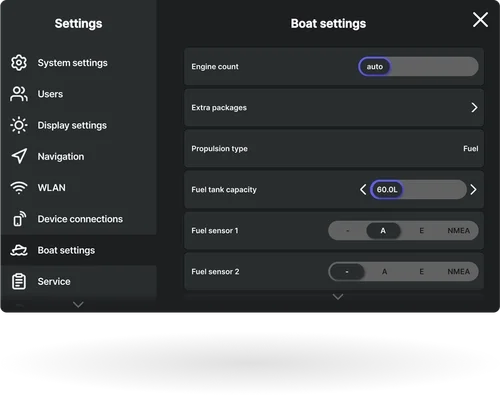

  • Image of boat settings page

    Advanced Settings

    The Q Display settings are designed to be easy to use, yet powerful enough to cover even the most complex boating needs. From fine-tuning chart behavior to customizing system preferences, everything is accessible through a clear, intuitive interface - giving you full control without the complexity.

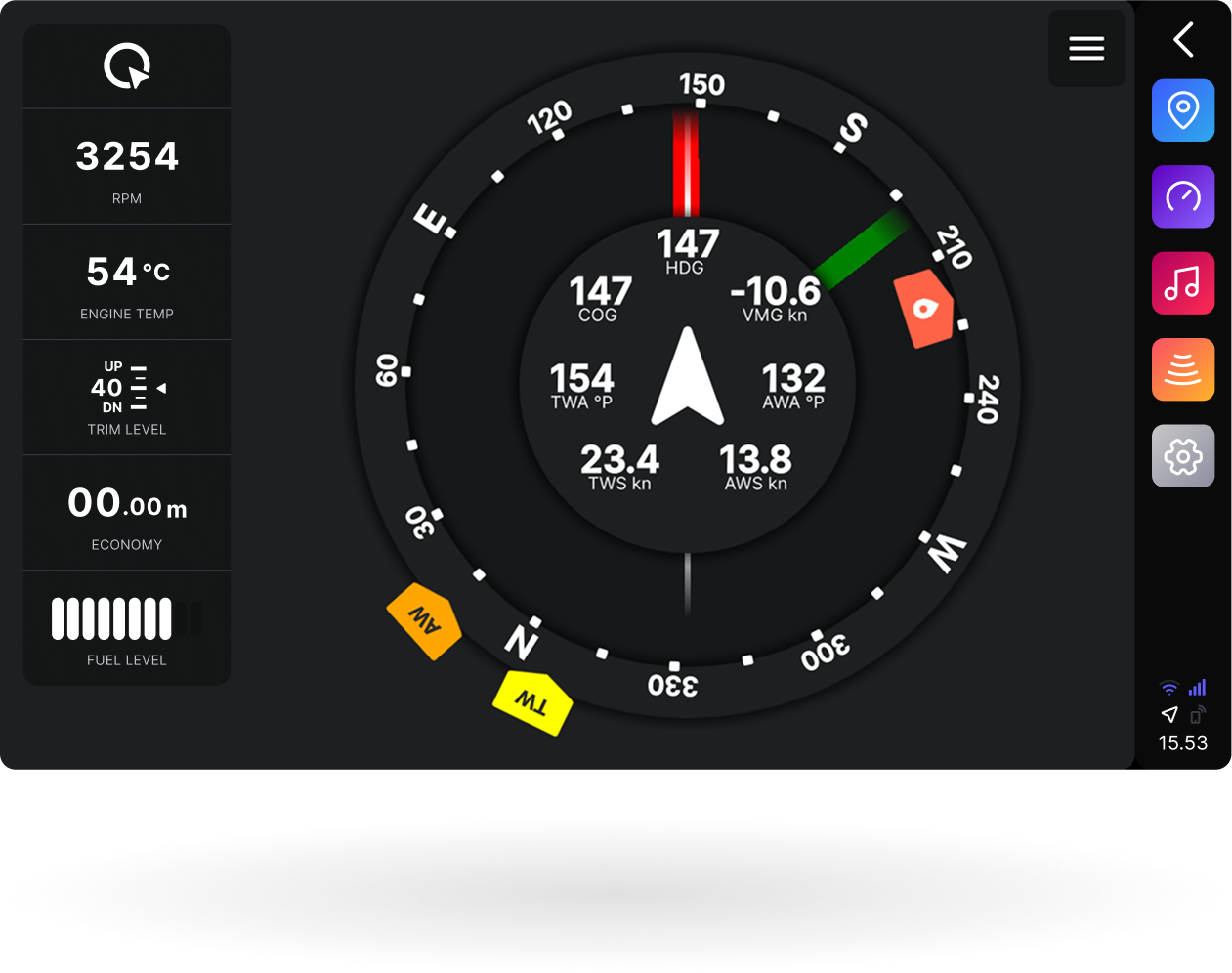

  • Image of Sailing Instrument

    Sailing Instrument

    Q Display’s sailing instrument replaces traditional gauges and physical instruments with a digital solution. It delivers all your essential sailing-related and calculated data in one place, with customizable widgets to tailor the view exactly how you want it.

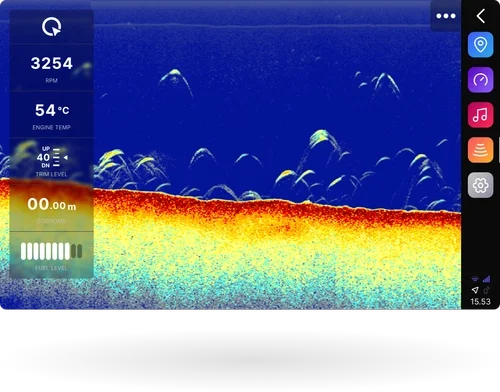

  • Image of fishfinder

    Fishfinders

    With Airmar all-in-one CHIRP fishfinders, the Q Display delivers clear bottom imaging and precise fish target detection. Supporting both transom and thru-hull mounting with depth ranges up to 457 m, it’s a plug-and-play sonar solution designed for effortless integration.

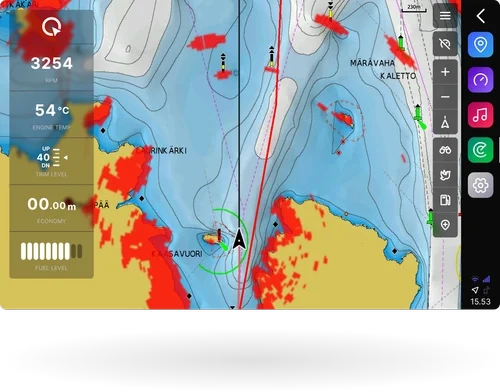

  • Image of Radar application

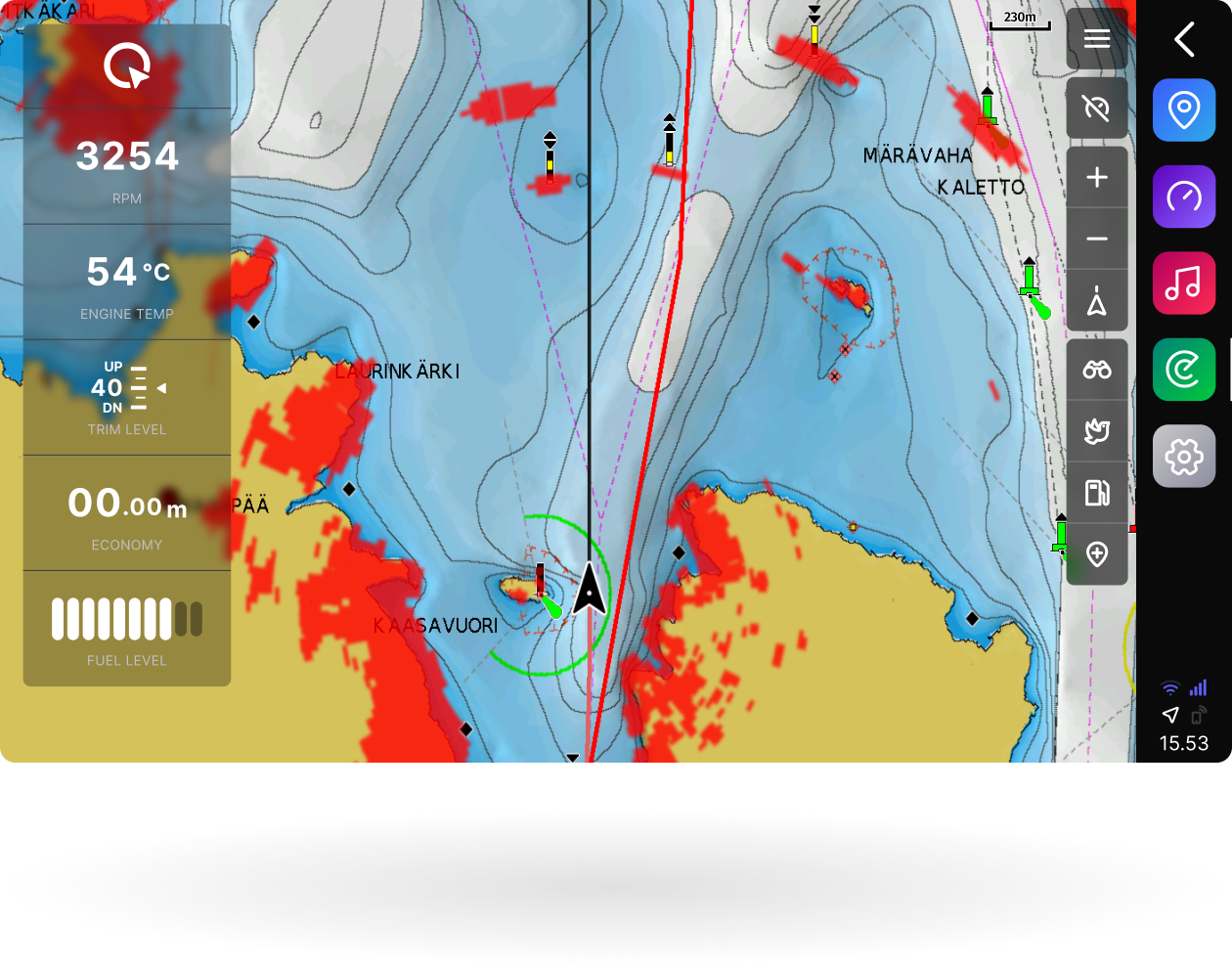

    Radar

    Q Display supports Raymarine Quantum CHIRP radar, offering both traditional radar views and radar overlay directly on the chart - perfect when navigating with charts and want radar information in view at the same time.

Superior user experience

No steep learning curves. No outdated menus. The Q Display interface is fast, fluid, and purpose-built for life at sea. Easily switch between apps, customize your views, and control your boat with confidence - even in sunlight and rough waters.

Built with boaters in mind, every detail is designed to simplify your experience so you can stay focused on the journey ahead.

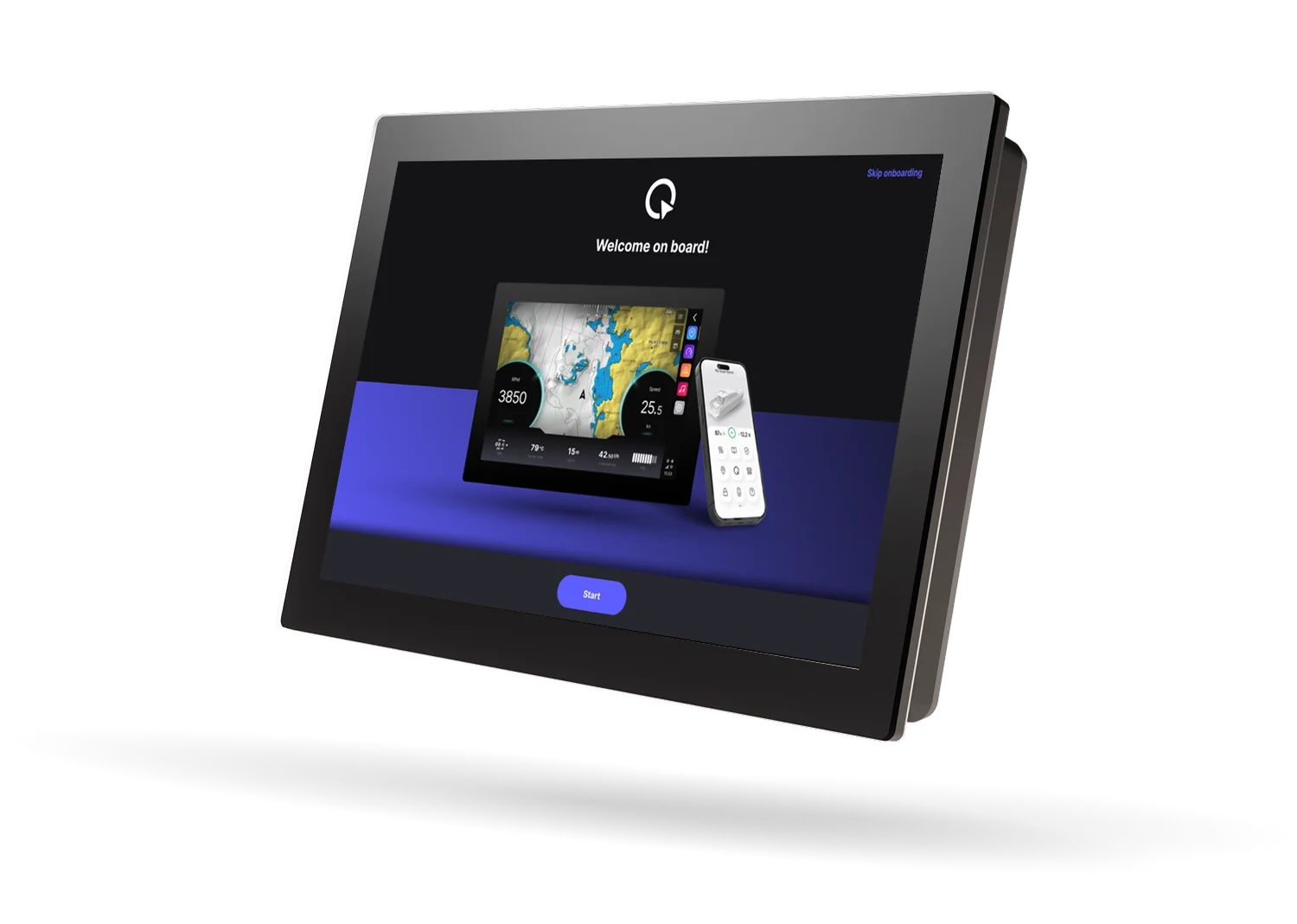

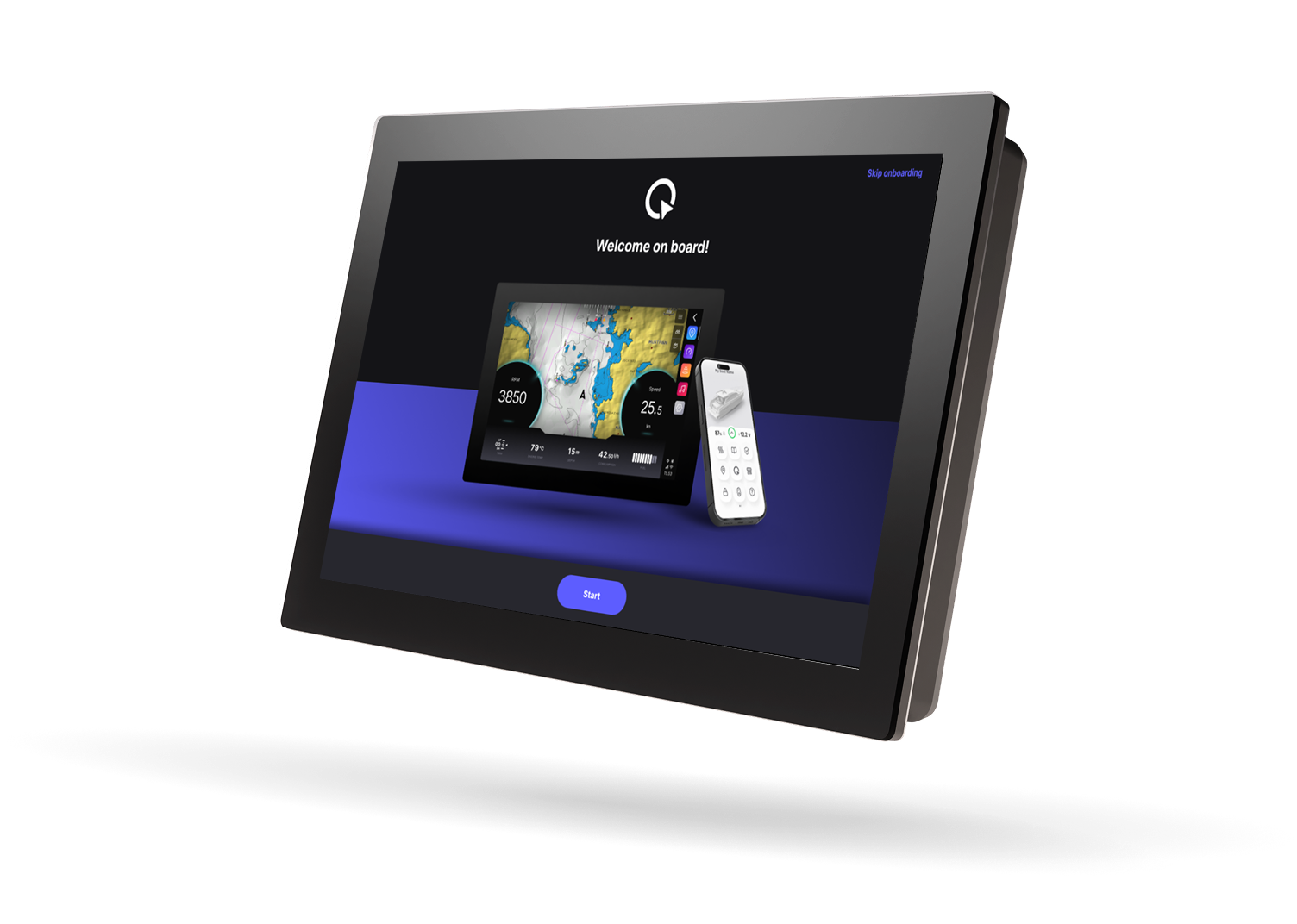

Image of Q Display with onboarding screen

Stay connected to your boat. All the time.

Pairing your Q Display with the Q App, the Q Connected -subscription, and with the Q Guard -cables, gives you full control - wherever your life takes you.

Q Connected -subscription gives your Q Display a 24/7, always-on internet connection - even when the display is off.

Q App enables you to see your boat’s location, access live boat data, receive updates automatically, and control key devices remotely - all from your phone. It’s smart, secure, and made to make boating easier.

Q Guard is your ultimate surveillance system, which immediately sends you a notification if something is not right: boat leaves the docking area without authorization, bilge water level rises, the battery voltage drops too low, the engine is stolen, or the boat is hitting the dock.

A hand holding a Q App at home

Various sizes to match any need.

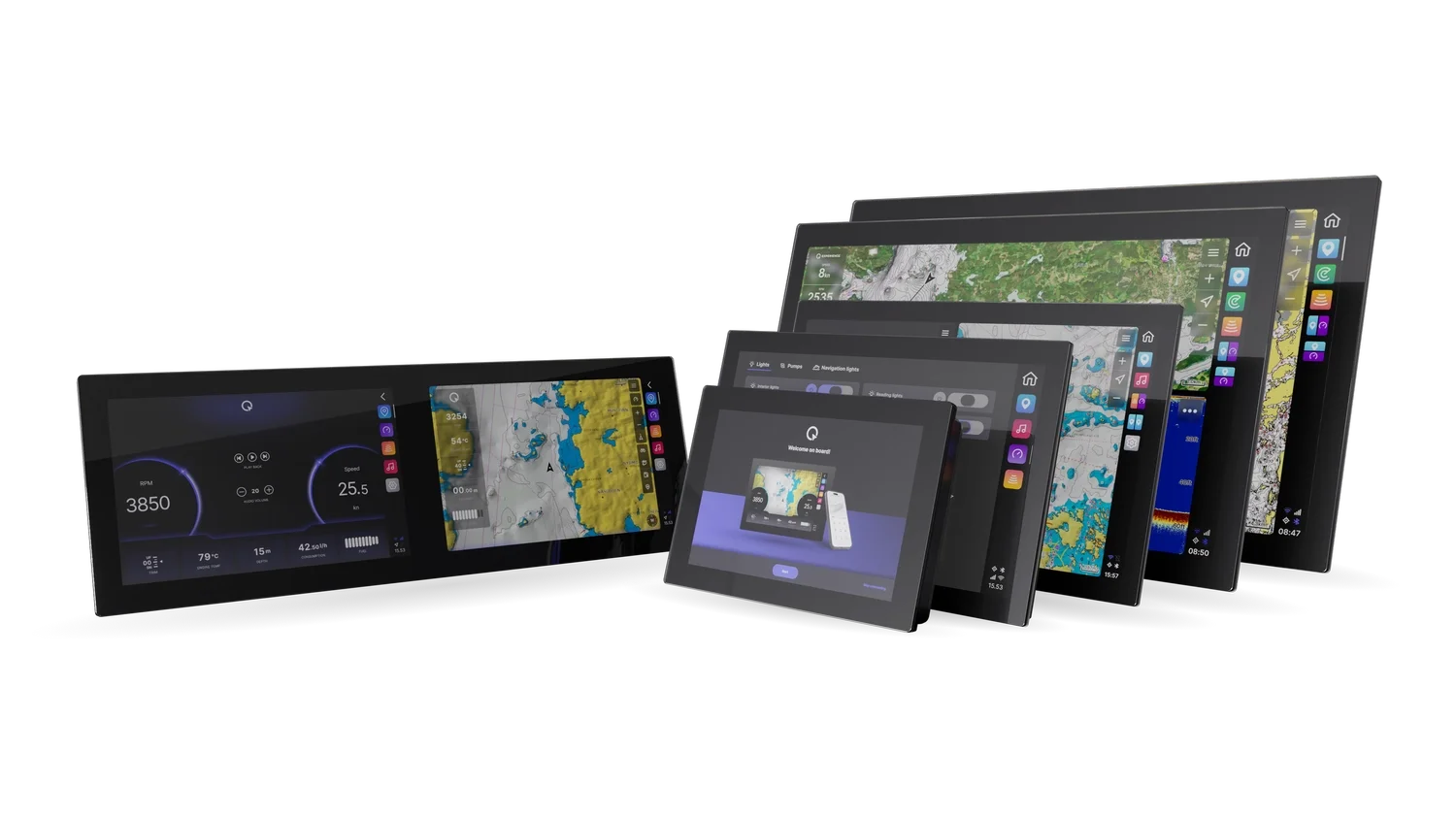

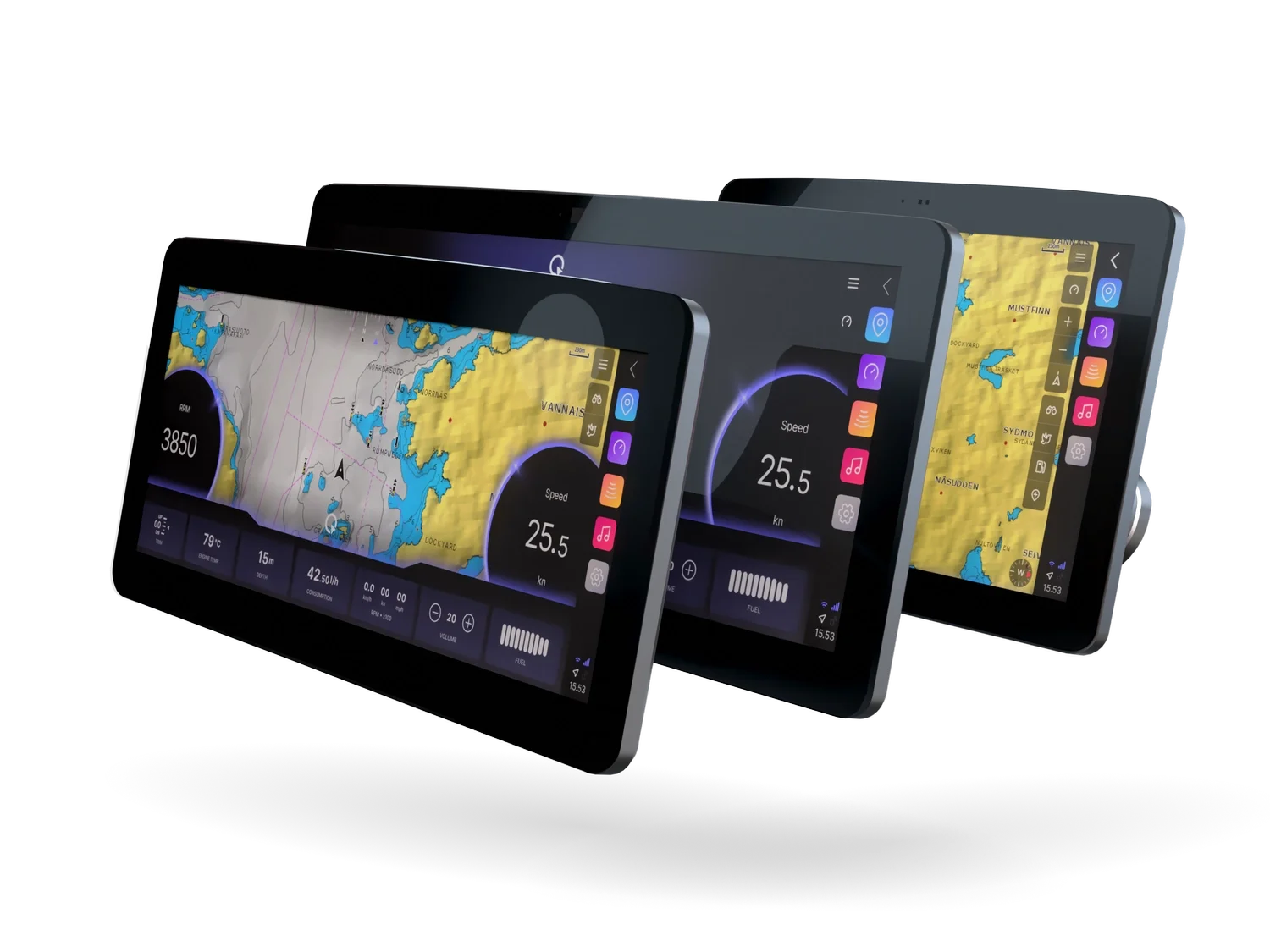

Image of different Q Display sizes

Classic mount
Available in 10", 12”, 16”, 22”, 24” and double 10”

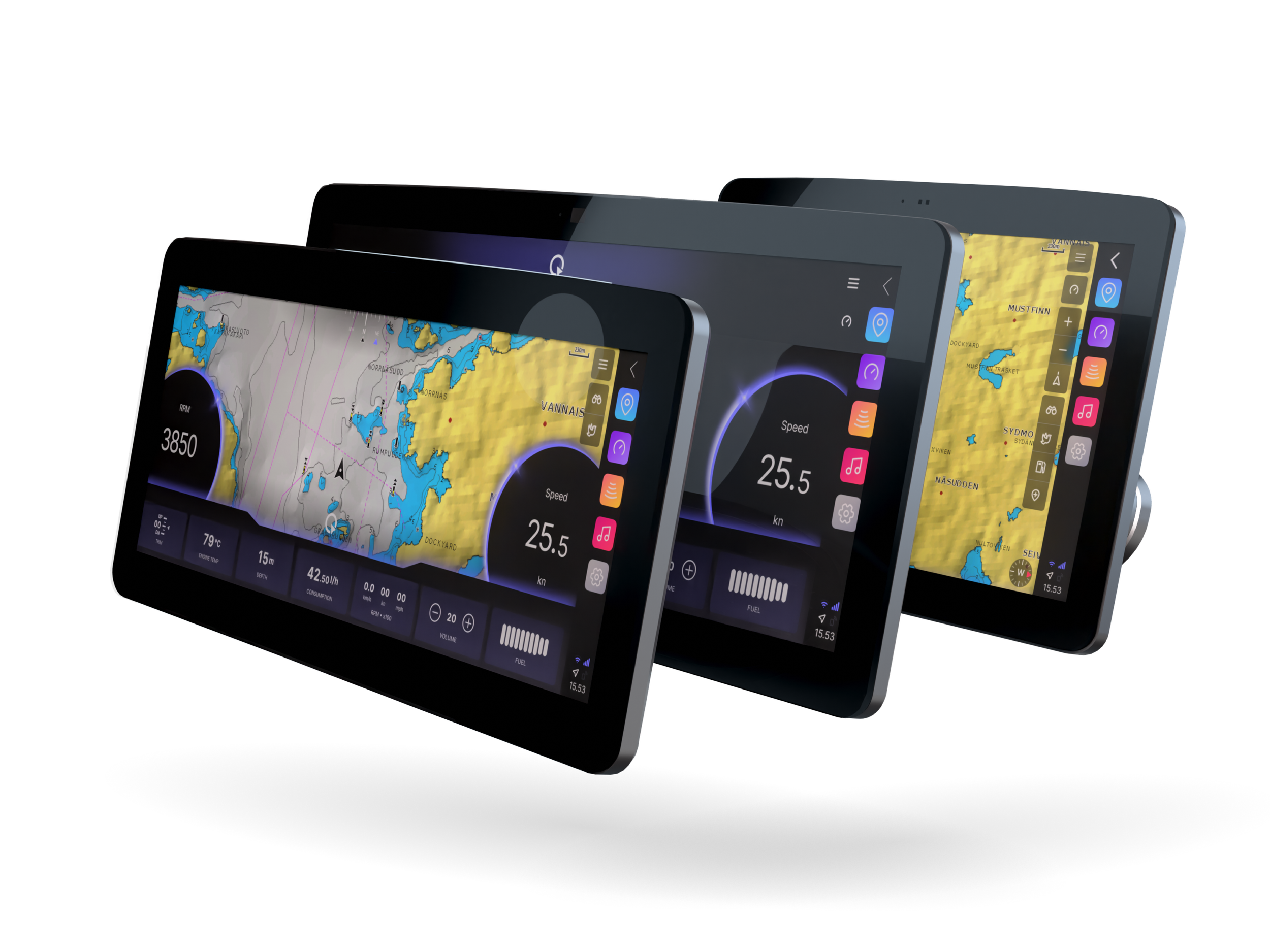

Float mount
Available in 10", 12” Wide and 15” Wide

Integrate seamlessly

Q Display supports a wide range of integrations, so you can connect and control everything from lights and audio to radar, cameras, and electric propulsion — all from one intuitive screen. The system works seamlessly with many third-party marine technologies, making it easier than ever to enjoy a fully connected boating experience.

A diagram showing various technology and system brands categorized into sections, including Digital Switching, Fishfinders, Heating & Air Conditioning, Audio System, Boat Control, Radar, Cameras, Propulsion Systems, and NM EA 2000.

Make it truly yours.

Due to soft-branding possibilities, Q Displays can be branded with the boat manufacturer’s logos and brand colors, making every display feel like a natural extension of the boat. Read more about the boat manufacturer possibilities.

Learn more
Contact

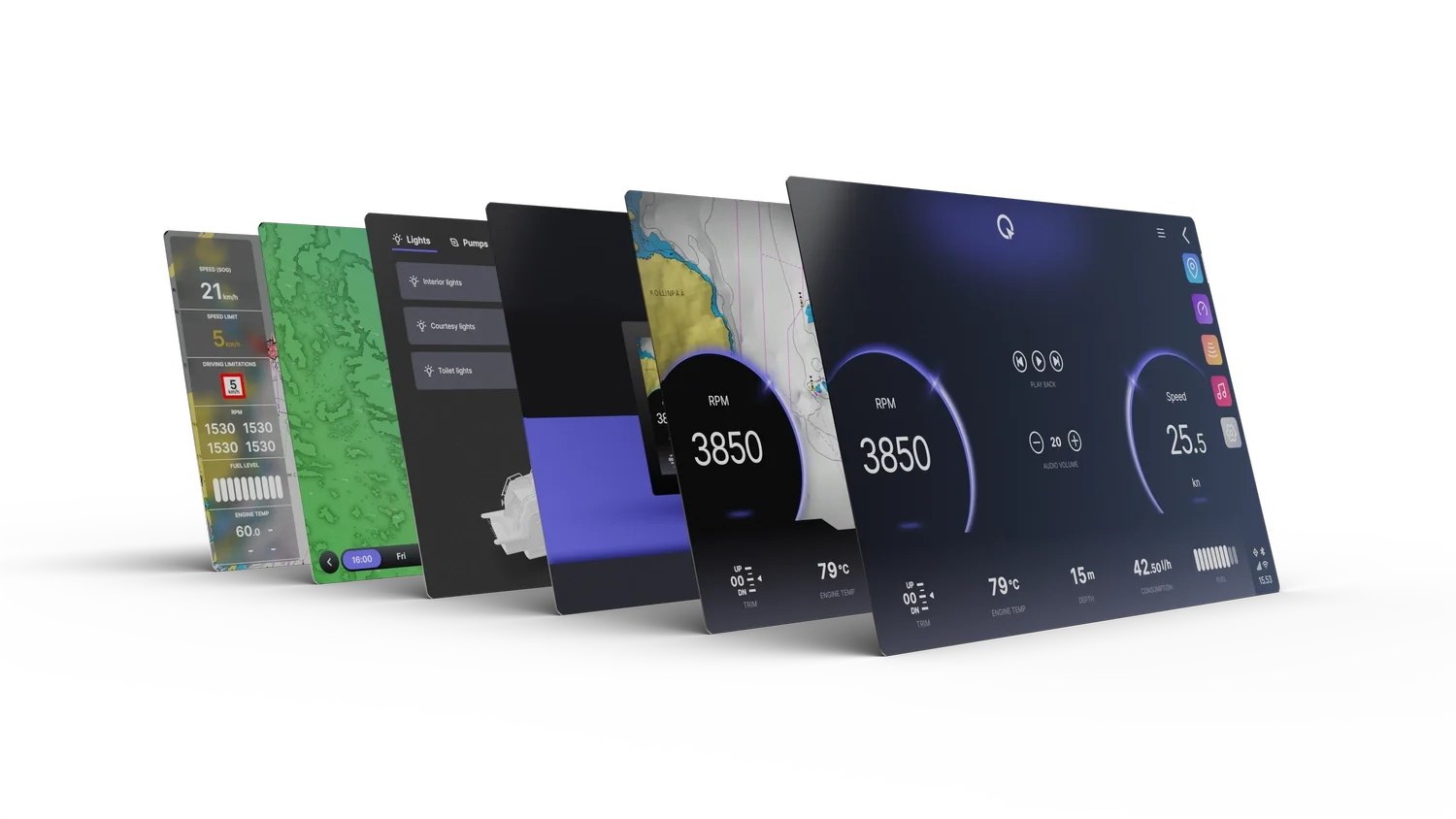

Futuristic digital dashboards displaying various data such as speed, temperature, navigation maps, and vehicle information in overlapping layers against a black background.

Technical details

Q Display Classic mount

  • • Color: black

    • Hexacore processor

    • Dedicated GPU

    • IP67 Front / IP65 Back

    • 4G/LTE  with preinstalled micro SIM

    • WLAN client and hotspot*

    • Wireless pairing with a mobile phone

    • NMEA 2000

    • USB

    • 2 IN and 3 OUT pins for Q Guard

    • 2 OUT for remote control

    • 1 analog fuel sensor support

    • Wakes up every 10 mins for remote controlling

    • 2 Ethernet ports

    *Requires Q Connected subscription and data package

    • Navionics+ & Navionics Platinum+

    • Dock-to-dock auto routing

    • 10 Hz GPS

    • SD card reader

    • 2 x 20W Class-D audio amplifiers

    • Dual zone RCA audio-output

    • FM/DAB/DAB+ with additional antenna

    • Music streaming from a mobile phone

    • Internet Radio*

    *Requires Q Connected subscription and data package

  • • IPS TFT

    • AG or AR and AF coating

    • Multi-touch functionalities

    • Ultra-durable 3 mm glass

    • 1 port for aux full-feature display

  • 10”

    • Dimensions (mm): 260 × 177 × 61

    • Cut-out (mm): 248 × 165

    12”

    • Dimensions (mm): 303 x 209 x 63

    • Cut-out (mm): 292 x 198

    16”

    • Dimensions (mm): 391 x 240 x 64

    • Cut-out (mm): 379 x 228

    10” Double

    • Dimensions (mm): 510 x 180 x 61

    • Cut-out (mm): 498 x 168

    22”

    • Dimensions (mm): 518 x 318 x 64

    • Cut-out (mm): 506 x 306

    24”

    • Dimensions (mm): 570 x 348 x 68

    • Cut-out (mm): 558 x 336

  • In use / in Q Guard mode*

    10”: 17W / 0,2W

    12”: 22W / 0,2W

    16”: 38W / 0,2W

    10” Double: 31W / 0,2W

    22”: 58W / 0,2W

    24”: 55W / 0,2W

    *Audio amplifier increases power consumption by a maximum of 5A

  • 10”

    • Resolution: 1280*800

    • Brightness (cd/m2): 850

    • Contrast: 800

    12”

    • Resolution: 1280*800

    • Brightness (cd/m2): 1300

    • Contrast: 1000

    16”

    • Resolution: 1920*1080

    • Brightness (cd/m2): 1000

    • Contrast: 1000

    10” Double

    • Resolution: Dual 1280*800

    • Brightness (cd/m2): 850

    • Contrast: 800

    22”

    • Resolution: 1920*1080

    • Brightness (cd/m2): 1400

    • Contrast: 1000

    24”

    • Resolution: 1920*1080

    • Brightness (cd/m2): 1000

    • Contrast: 1000

Q Display Float mount

  • • Color: Titanium

    • Hexacore processor

    • Dedicated GPU

    • IP67 - Display and Core unit

    • 4G/LTE  with eSIM

    • WLAN client and hotspot**

    • Wireless pairing with a mobile phone

    • NMEA 2000

    • 2 USB ports

    • 3 IN pins for Q Guard

    • 8 digital I/O for boat and remote control or Q Guard

    • 1 analog fuel sensor support

    • Constantly ON for remote controlling

    • 1 Ethernet port

    • Optional 128 Gt internal mass-storage

    **Requires Q Connected subscription and data package

    • Navionics+ & Navionics Platinum+ charts

    • Dock-to-dock auto routing

    • 10 Hz GPS

    • SD card reader

    • 2 × 25W Class-D audio amplifiers

    • Dual zone RCA audio-output

    • FM/DAB/DAB+ with additional antenna

    • Music streaming from a mobile phone

    • Internet Radio**

    **Requires Q Connected subscription and data package

  • • IPS TFT

    • AG and AF coating

    • Multi-touch functionalities

    • Ultra-durable 3 mm glass

    • 2 ports for full-feature displays

  • 10”

    • Dimensions (mm): 175 x 249 x 61

    • Installation footprint (mm): 180 × 70

    12” Wide

    • Dimensions (mm): 151 x 326 x 61

    • Installation footprint (mm): 180 × 70

    15” Wide

    • Dimensions (mm): 396 x 174 x 61

    • Installation footprint (mm): 180 × 70

    + Core unit

    • Dimensions (mm): 179 x 272 x 78

  • In use / in Q Guard mode*

    10”: 13W / -

    12” Wide: 23W / -

    15” Wide: 28W / -

    + Core unit: 6W / 0,2W

    *Audio amplifier increases power consumption by a maximum of 5A. Power usages are estimates for the float mount displays and for the core unit separately

  • 10”

    • Resolution: 1280*800

    • Brightness (cd/m2): 1000

    • Contrast: 1000

    12” Wide

    • Resolution: 1920*720

    • Brightness (cd/m2): 1200

    • Contrast: 1000

    15” Wide

    • Resolution: 1920*720

    • Brightness (cd/m2): 1000

    • Contrast: 1300
